Volkswagen Golf Mk7 inc GTI/TDI (2014-2019) analogue Gauge
Volkswagen Golf Mk7 inc GTI/TDI (2014-2019) analogue Gauge
SKU:AP3VGT7

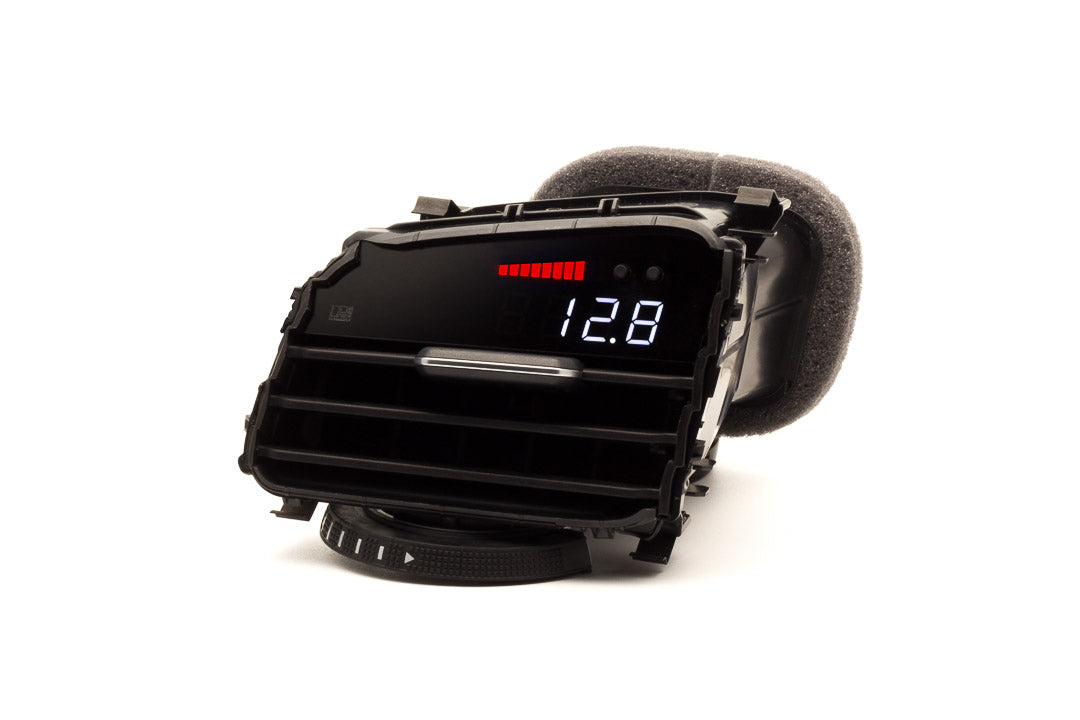

P3 analogue Gauge
- analogue boost (yellow/purple/black - dedicated plug for analogue boost sensor) *boost tap not included
- analogue input 1 (brown wire - can read any 0-5 volt linear output sensor)
- analogue input 2 (blue wire - can read any 0-5 volt linear output sensor)
- Battery voltage (red wire / black wire - read through power and ground wires)
- optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)
This gauge IS NOT plug and play like the OBD2 gauges. Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analogue inputs.

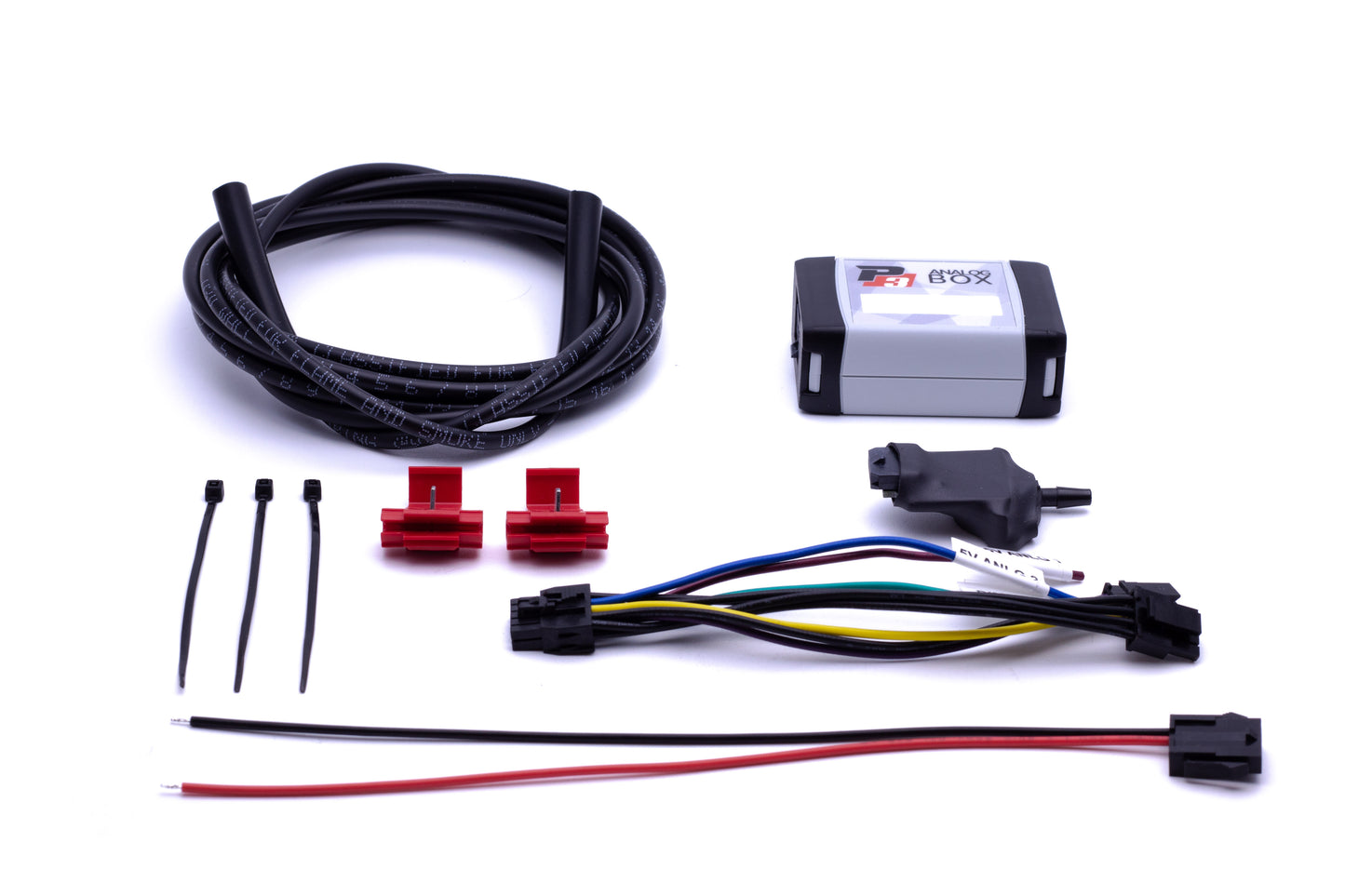

Kit Contents
- Integrated display
- analogue Box control unit
- Main harness
- Hard-wire harness
- analogue boost sensor *boost tap not included
- Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
- 3 zip ties
- 2 scotchlok wire taps
Optional Add-Ons
- OBD2 power/ground tap harness allows you to connect to power and ground through your OBD2 port without any wire splicing (does not add OBD2 functionality)
- P3 ESVA (ethanol sensor voltage adaptor) allows your gauge to read ethanol content and fuel temp directly from any Continental/GM Ethanol sensor *Ethanol sensor not included
- LC-2 Wideband o2 Sensor Kit allows your gauge to read your vehicle's Air/Fuel Ratio. Includes everything you need to add a wideband sensor to your exhaust.
- Any Other 0-5 Volt Linear Output Sensor Can Be Read oil pressure, oil temp, coolant temp, air ride pressure, egt, etc...
FAQ's
What is the difference between the P3 Analog Gauge and the P3 V3 OBD2 Gauge?
The P3 Analoge gauge pulls information through analog sensors only (it does not connect to your vehicle’s network). The P3 V3 Gauge plugs into your vehicle’s OBD2 port and communicates directly with the ECU to pull information (analog sensors can be added to the P3 V3 Gauge as well).
How hard are P3 Gauges to install?
Each gauge is designed to be as easy as possible to install. The length/difficulty of install will depend on your ability/skill level and which version gauge you choose. The P3 Analog Gauge takes 30-60 minutes to install in most cases. The P3 V3 Gauge usually takes 5-30 minutes.
How accurate are the gauge readings?
The P3 Analoge Gauge uses an analog sensor that reads boost directly from your intake/charge pipe.
The P3 V3 Gauge works the same as a scan tool or code reader; it is reporting values that are present in your ECU. As long as the gauge is correctly configured for your vehicle, the values are shown on your gauge are the same values present in your ECU.
Sometimes with highly modified vehicles and/or certain ECU re-flashes or piggy-back tunes can skew the data.
What if my car is heavily tuned?
In nearly all cases, the P3 V3 Gauge will not be affected by modifications or a re-flashed ECU.
The function of our P3 Analogue Gauge is not affected by any tunes or modifications in any way.
“Piggy-back” style tunes that intercept sensors, can make the boost readings in the ECU appear lower than the actual value because the tune is “lying” to the ECU. In these cases our Analogue boost sensor can be easily added to your P3 V3 Gauge to keep an accurate boost reading.
Does the gauge require any additional parts for installation?
The P3 V3 Gauge does not require any additional parts for installation in most applications. Depending on vehicle model, the add-on analogue boost sensor may be required along with a boost tap kit.
The P3 Analogue Gauge may also require a boost tap to provide a fitting to connect to your vehicle’s intake manifold/charge pipe for your boost reading.

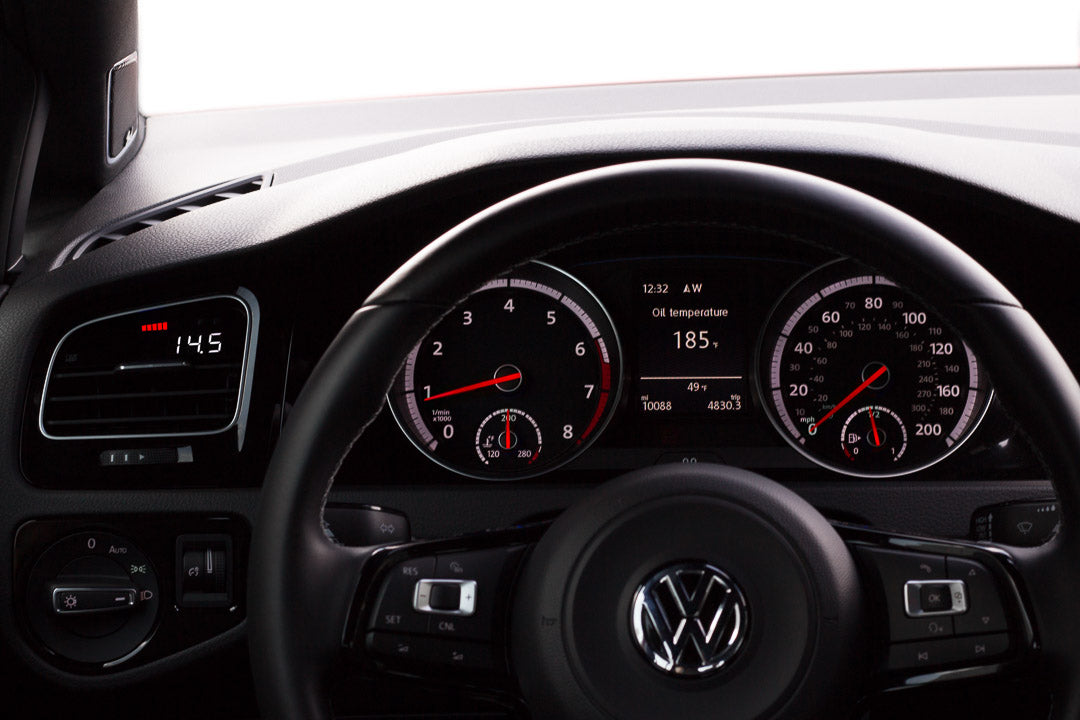

Does the air vent still function with the gauge installed?
Yes, unlike some competitor vent gauges all P3 gauges retain airflow though the air vent.
